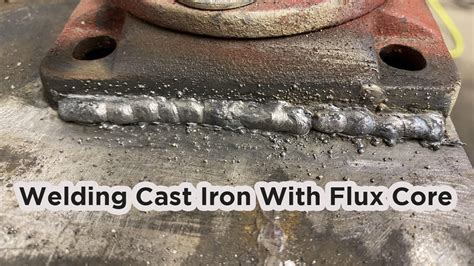

Welding cast iron can seem like a daunting task, fraught with the potential for cracks and frustrating failures. However, with the right preparation, technique, and understanding of the material’s unique properties, achieving strong, reliable welds on cast iron is entirely possible. The key lies in controlling the heat input and cooling rate to minimize stress and prevent the formation of brittle martensite. This seemingly unforgiving material can be tamed, transforming from a welding nightmare into a manageable project. Furthermore, mastering cast iron welding opens up a world of repair and fabrication possibilities, from fixing cracked engine blocks to creating custom artistic pieces. So, let’s delve into the intricacies of this specialized welding process and uncover the secrets to success.
Firstly, preheating the cast iron component is crucial. This step helps to reduce the temperature gradient between the weld zone and the surrounding base metal, minimizing the risk of cracking. Ideally, the preheat temperature should be between 500°F and 1200°F, depending on the specific type of cast iron and the size and complexity of the part. Additionally, maintaining this preheat temperature throughout the welding process is equally important. Consequently, using a temperature-controlled oven or strategically placed heating elements is highly recommended. Moreover, proper cleaning of the cast iron surface is essential. Any grease, oil, rust, or paint must be thoroughly removed before welding. This can be achieved through grinding, wire brushing, or chemical cleaning methods. Furthermore, selecting the correct welding rod is another critical factor. Nickel-based rods are generally preferred for cast iron welding due to their ability to withstand the material’s inherent brittleness. Specifically, nickel 99 or nickel 55 rods are commonly used.
Next, employing the correct welding technique is paramount. Short, intermittent welds, often referred to as “stitching” or “butterflies,” are highly effective in controlling heat input. This technique involves depositing small weld beads, allowing them to cool slightly before adding the next bead. As a result, the overall heat buildup is minimized, reducing the likelihood of cracking. Furthermore, peening the weld beads while they are still hot can help relieve residual stresses. Peening involves lightly hammering the weld with a ball-peen hammer to compress the weld metal and improve its ductility. Subsequently, slow cooling is essential after welding is complete. Allowing the cast iron component to cool gradually in a controlled environment, such as an insulated container or a preheated oven, prevents rapid temperature changes that can induce cracking. Finally, post-weld heat treatment, also known as stress relieving, can further enhance the weld’s strength and durability. This involves heating the entire component to a specific temperature and holding it for a predetermined time, followed by slow cooling. In conclusion, by meticulously following these steps, even challenging cast iron welding projects can be successfully completed with confidence.
Choosing the Correct Filler Metal for Cast Iron Welding
Picking the right filler metal is crucial for a successful cast iron weld. The unique properties of cast iron, namely its high carbon content and susceptibility to cracking, necessitate a filler rod designed to address these challenges. Using the wrong rod can lead to weak welds, cracking, or even make the repaired area harder than the surrounding cast iron, creating stress points prone to future failure. Therefore, understanding the different types of filler metals available and their specific applications is essential.
Filler Metal Types
Several types of filler rods are suitable for welding cast iron. The most common include nickel-based rods, steel rods, and bronze rods. Each has its strengths and weaknesses, making them better suited for particular applications.
Nickel-Based Filler Rods
Nickel-based rods are generally considered the premium choice for welding cast iron. They offer excellent crack resistance due to their ability to create a ductile weld deposit. This ductility helps absorb stresses during cooling and prevents the weld from cracking. Nickel rods also provide good machinability, meaning the repaired area can be easily shaped or drilled after welding. Another benefit is their color match to cast iron, resulting in a less noticeable repair. However, nickel-based rods come at a higher price point compared to other options.
Within the nickel-based category, you’ll find different classifications, like NI-ROD and NI-ROD 55. NI-ROD is a common general-purpose choice for cast iron repair. It’s great for joining dissimilar metals and building up worn areas. NI-ROD 55 offers similar properties but with slightly improved strength and ductility. Choosing the right nickel-based rod often depends on the specific application and the required mechanical properties of the finished weld.
Here’s a breakdown of some common nickel-based filler rod classifications:
| Classification | Properties | Common Uses |
|---|---|---|
| NI-ROD | Good all-around performance, ductile, machinable | General cast iron repair, joining dissimilar metals |
| NI-ROD 55 | Improved strength and ductility compared to NI-ROD | High-stress applications, repairs requiring higher mechanical properties |
| NI-CL | Specifically designed for cast iron with high phosphorus content | Repairing older cast iron castings that may contain higher phosphorus levels |
Choosing the appropriate nickel-based rod involves considering factors like the type of cast iron being welded (gray iron, ductile iron, etc.), the size and location of the repair, and the expected stresses on the welded area. For critical applications, consulting welding specifications or seeking expert advice is recommended.
Steel Filler Rods
Steel filler rods are a more economical option for welding cast iron, but they present a higher risk of cracking. The weld deposit created by steel rods is harder than the surrounding cast iron, which can lead to stress concentrations and potential cracks during cooling. This makes preheating and slow cooling crucial when using steel rods on cast iron. While steel rods are suitable for less critical repairs or for filling large gaps, they are generally not recommended for high-stress applications.
Bronze Filler Rods
Bronze filler rods offer a unique approach to cast iron repair. They produce a relatively soft and ductile weld deposit that doesn’t actually fuse with the cast iron. Instead, the bronze brazes to the surface of the cast iron, creating a strong mechanical bond. This method is particularly useful for repairing cracked cast iron parts where minimizing heat input is crucial. Bronze welding is often preferred for repairing antique or delicate castings as it reduces the risk of distortion or further cracking.
Welding Techniques for Cast Iron: Preventing Cracking
Preheating and Slow Cooling
Cast iron is notorious for its tendency to crack during welding due to its brittle nature and high carbon content. Preheating the cast iron before welding helps to reduce the temperature difference between the weld and the surrounding metal, minimizing stress and the risk of cracking. Think of it like warming up a cold muscle before exercising – it helps prevent injury. The preheating temperature depends on the specific type of cast iron, but typically ranges from 150°F to 1200°F (65°C to 650°C). After welding, slow cooling is just as crucial. Allowing the cast iron to cool gradually, often in a controlled environment like a furnace or by burying it in sand or vermiculite, prevents rapid temperature changes that can induce stress and cracking. This slow cooling process allows the metal to relax and the stresses to dissipate evenly.
Low Heat Input Welding
Using a lower heat input during welding helps to minimize the heat-affected zone (HAZ), the area around the weld that experiences metallurgical changes due to the heat. A smaller HAZ means less stress and a lower risk of cracking. This can be achieved by using lower amperage settings, shorter arc lengths, and multiple passes instead of one large, heat-intensive pass. It’s like cooking a delicate sauce on low heat rather than blasting it on high – you get a much better, more controlled result.
Selecting the Right Filler Rod
The filler rod you choose plays a vital role in successful cast iron welding. Nickel-based filler rods are commonly preferred due to their high ductility and ability to withstand the stresses associated with cast iron welding. They’re like the flexible glue that holds the rigid cast iron pieces together without cracking under pressure. Other options include special cast iron electrodes and bronze rods, each with its own specific properties and applications.
Peening
Peening is a technique that involves lightly hammering the weld bead with a ball-peen hammer while it’s still hot (but not too hot!). This helps to relieve residual stresses in the weld and the surrounding metal, reducing the risk of cracking. Think of it like giving the weld a gentle massage to relax and release any built-up tension. It’s important to use light, overlapping blows to avoid damaging the cast iron.
Stress-Relieving Techniques
After welding, there are several stress-relieving techniques that can further minimize the risk of cracking. One of the most common is post-weld heat treatment (PWHT). This involves heating the entire casting to a specific temperature (typically lower than the preheat temperature) and holding it there for a predetermined period, allowing the stresses within the metal to equalize. The specific temperature and time depend on the type of cast iron and the size and complexity of the weld. Another technique is vibratory stress relief, which uses vibrations to relieve residual stresses in the weldment. This is a non-thermal method that’s particularly useful for large or complex castings that can’t be easily heat treated. And, as mentioned before, proper slow cooling, often using insulating materials like vermiculite or sand, is a simpler but still effective stress-relieving method.
| Stress-Relieving Technique | Description | Benefits |
|---|---|---|
| Post-Weld Heat Treatment (PWHT) | Heating the entire casting to a specific temperature and holding for a set time. | Reduces residual stresses throughout the casting, improves ductility and machinability. |
| Vibratory Stress Relief | Using vibrations to relieve residual stresses. | Non-thermal method, suitable for large or complex castings. |
| Slow Cooling | Allowing the casting to cool slowly in a controlled environment. | Simple and effective for reducing stress, minimizes risk of cracking. |
Post-Weld Cooling and Stress Relieving Techniques
Cooling a cast iron weld correctly is just as crucial as the welding process itself. Improper cooling can lead to cracking, distortion, and a weakened weld. The goal is to minimize the temperature difference between the weld and the surrounding cast iron, allowing the metal to contract slowly and evenly.
Slow Cooling Methods
Slow cooling is the preferred method for most cast iron welding repairs. It allows the weld and the surrounding metal to cool at a similar rate, reducing the risk of stress cracking. Here are a few techniques:
Peening
While the weld is still hot (but not molten), gently peening the weld and the heat-affected zone (HAZ) with a ball-pein hammer helps relieve stress by compressing the metal. Overlapping blows should be used, working outwards from the weld center. Peening also helps refine the grain structure, improving the weld’s strength and ductility.
Insulating with Blankets
Covering the welded area with welding blankets, dry sand, or even vermiculite creates an insulating layer that slows down the cooling process. This is particularly useful for larger castings or in colder environments where rapid cooling is more likely.
Burial in Dry Sand or Vermiculite
For more complex or larger castings, burying the entire piece in dry sand or vermiculite offers excellent insulation and ensures uniform cooling. This is ideal for minimizing stress and preventing cracking in intricate parts.
Stress Relieving
Even with careful cooling, residual stresses can remain in the cast iron after welding. Stress relieving is a heat treatment process that reduces these internal stresses, further minimizing the risk of cracking and improving the long-term stability of the repair.
Furnace Stress Relieving
This is the most controlled and effective stress-relieving method. The cast iron piece is heated in a furnace to a specific temperature (typically between 500-650°C or 932-1202°F depending on the cast iron type) and held at that temperature for a set period, typically one hour per inch of thickness. The part is then slowly cooled within the furnace, further reducing stress. This method provides the most uniform stress relief but requires access to a furnace.
Local Stress Relieving
When furnace stress relieving isn’t feasible, localized stress relief can be achieved using techniques like preheating the entire casting before welding and post-heating the welded area with a torch after welding, followed by slow cooling as previously discussed.
Temperature Control and Monitoring
Accurate temperature control is vital during stress relieving. Overheating can alter the metallurgical properties of the cast iron, while underheating won’t effectively relieve stress. Using temperature-indicating crayons or thermocouples allows for precise monitoring and ensures the process is carried out correctly. The following table outlines suggested temperature ranges for various cast iron types:
| Cast Iron Type | Stress Relieving Temperature (°C) | Stress Relieving Temperature (°F) | Holding Time (hours per inch of thickness) |
|---|---|---|---|
| Grey Iron | 500-593 | 932-1100 | 1 |
| Ductile Iron | 593-650 | 1100-1202 | 1 |
| Malleable Iron | Consult manufacturer specifications | Consult manufacturer specifications | Consult manufacturer specifications |
Remember to consult specific guidelines and procedures for the particular type of cast iron you’re working with and the size and complexity of the casting. These techniques are crucial for producing strong, reliable, and long-lasting cast iron weld repairs.
Inspecting Your Cast Iron Weld for Quality and Integrity
A good weld on cast iron isn’t just about making it hold; it’s about ensuring it stays strong and reliable over time. This means taking the time to inspect your work carefully. Here’s how you can ensure a quality, long-lasting repair.
Visual Inspection
Start with the easiest part: looking at the weld. A good cast iron weld should appear smooth and even, free from obvious cracks, holes, or excessive spatter. The weld metal should transition smoothly into the base metal without any abrupt changes in contour. Look for any signs of incomplete fusion, where the weld metal hasn’t properly bonded with the cast iron. This can appear as a distinct line or gap between the two materials.
Crack Detection
Cracks, even tiny ones, are a serious issue in cast iron welds. They can propagate over time, eventually leading to failure. Use a magnifying glass or a low-power microscope to examine the weld and the surrounding area for any signs of cracking. Pay close attention to the heat-affected zone (HAZ), the area around the weld where the metal’s properties have been altered by the heat. Cracks often initiate in the HAZ due to the rapid heating and cooling experienced during welding.
Penetrant Testing (PT)
For a more in-depth crack inspection, particularly for critical applications, consider using penetrant testing (PT). This method involves applying a coloured or fluorescent dye to the cleaned weld area. The dye seeps into any surface-breaking cracks. After a set time, the excess dye is removed, and a developer is applied. The developer draws the dye out of the cracks, making them clearly visible against the background. This method is highly sensitive and can reveal even the smallest cracks that might be missed by visual inspection.
Magnetic Particle Inspection (MPI)
If the cast iron part is magnetic, magnetic particle inspection (MPI) is another effective way to detect cracks. This method uses magnetic fields and iron particles to locate discontinuities. The part is magnetized, and iron particles (either dry or in a liquid suspension) are applied to the surface. Cracks disrupt the magnetic field, causing the iron particles to accumulate around them, making the cracks visible. This method is particularly good at finding subsurface cracks that might not be visible on the surface.
Hardness Testing
The welding process can significantly alter the hardness of the cast iron in the weld and HAZ. Excessive hardness can make the weld brittle and susceptible to cracking. Hardness testing can help determine if the weld and surrounding area are within acceptable limits. Several methods are available, including Rockwell hardness testing, which is a common and relatively simple method for measuring the hardness of metals.
Soundness Testing (Ultrasonic Testing)
Ultrasonic testing (UT) uses high-frequency sound waves to detect internal flaws like cracks, voids, and inclusions in the weld. A probe transmits sound waves into the material, and the echoes are analyzed to identify any anomalies. This method is especially useful for thicker sections of cast iron where surface inspection methods might not be sufficient. However, it requires specialized equipment and training to perform effectively.
Dimensional Inspection
Don’t forget to check the dimensions of the welded part. The heat from welding can cause distortion or warping, especially in larger or complex castings. Use appropriate measuring tools, like calipers, micrometers, or gauges, to ensure that the final dimensions are within acceptable tolerances.
Destructive Testing
For absolutely critical applications where failure could have catastrophic consequences, destructive testing might be necessary. This involves cutting a sample from the weld and examining its microstructure under a microscope. This method can reveal information about the grain structure, the presence of any defects, and the quality of the fusion between the weld metal and the base metal. While providing valuable insights, destructive testing obviously renders the tested part unusable, so it’s only used as a last resort or for quality control purposes on a small number of representative samples. For example, you could section the weld to analyze the penetration depth and fusion quality, or perform bend tests to evaluate the weld’s ductility and strength.
| Inspection Method | Detects | Suitable For |
|---|---|---|
| Visual Inspection | Surface cracks, porosity, incomplete fusion, spatter | Initial screening, quick assessment |
| Penetrant Testing (PT) | Surface-breaking cracks | Critical applications, detailed crack detection |
| Magnetic Particle Inspection (MPI) | Surface and near-surface cracks in magnetic materials | Ferrous castings, detection of subsurface cracks |
| Ultrasonic Testing (UT) | Internal flaws (cracks, voids, inclusions) | Thick sections, detection of deep defects |
Safety Precautions for Welding Cast Iron
Welding on cast iron can be a bit tricky, and safety is paramount. It’s different than welding on steel, so taking the right precautions is essential for a successful and injury-free experience. Let’s delve into some key safety measures to keep in mind.
Personal Protective Equipment (PPE)
First things first, your safety gear. Welding cast iron produces fumes and sparks, so protecting yourself is non-negotiable.
Eye Protection
A good quality welding helmet with a proper shade lens is a must-have. This protects your eyes from the intense light and UV radiation produced during welding. Make sure the lens is appropriate for the welding process you’re using. An auto-darkening helmet is incredibly helpful for cast iron, as it allows you to see clearly before and after the arc is struck.
Gloves and Clothing
Heavy-duty welding gloves are crucial for protecting your hands and forearms from burns and sparks. Leather gloves specifically designed for welding are the best option. Wear flame-resistant clothing, preferably leather or heavy cotton, to cover exposed skin. Avoid synthetic materials as they can melt and stick to your skin if exposed to sparks. Close-toed shoes and long pants are also a must.
Respiratory Protection
Welding cast iron can produce potentially harmful fumes, particularly when dealing with painted or coated castings. A respirator specifically designed for welding fumes is highly recommended, especially in poorly ventilated areas. Make sure it’s properly fitted and the filters are appropriate for the type of fumes you might encounter.
Ventilation
Whenever possible, weld in a well-ventilated area or use local exhaust ventilation to remove fumes and particulate matter. If you’re working indoors, ensure adequate ventilation to keep the air clean and breathable. A fume extractor can be a worthwhile investment for regular cast iron welding.
Pre-Welding Precautions
Preparation is key when it comes to welding cast iron. Taking a few precautionary steps before striking an arc can make a significant difference.
Cleaning the Cast Iron
Thoroughly clean the cast iron surface to be welded. Remove any paint, grease, oil, or rust. This will help ensure a good weld and reduce the risk of producing harmful fumes. A wire brush or grinder can be helpful for removing stubborn debris.
Preheating
Cast iron is susceptible to cracking due to rapid temperature changes during welding. Preheating the casting to a specific temperature, typically between 300°F (150°C) and 1200°F (650°C) depending on the size and thickness of the casting, helps to slow the cooling rate and minimize the risk of cracking. Consult welding guides for specific preheating recommendations for your particular casting.
Crack Repair Considerations
If you’re repairing a crack, it’s important to prepare the crack properly. Grind a V-groove along the crack to ensure proper penetration of the weld metal. This allows the filler metal to fill the crack completely and create a strong bond. For larger cracks, you may need to use a specialized technique like peening to relieve stress and prevent further cracking.
Post-Welding Procedures
Slow Cooling
Allow the welded cast iron to cool slowly. Rapid cooling can lead to cracking. You can bury the casting in sand, vermiculite, or a specialized insulating blanket to slow the cooling process. This gradual cooling allows the metal to adjust to the temperature changes without stress buildup.
Post-Weld Heat Treatment (Optional)
In some cases, a post-weld heat treatment may be necessary to relieve stress and improve the ductility of the weld. This involves heating the casting to a specific temperature and holding it there for a certain period before slowly cooling it. Consult a welding guide or expert for advice on whether post-weld heat treatment is appropriate for your specific application.
Material Specifics
Understanding the type of cast iron you’re working with can help you choose the correct welding process and filler metal.
| Cast Iron Type | Welding Considerations |
|---|---|
| Gray Cast Iron | Most common type, good machinability, prone to cracking. |
| Ductile Cast Iron | More ductile than gray iron, less prone to cracking. |
| Malleable Cast Iron | Good ductility and weldability. |
Choosing the right filler rod is crucial for successful cast iron welding. Nickel-based filler rods are commonly used due to their ability to withstand the stresses associated with cast iron. Consult with a welding supplier to select the appropriate filler rod for your specific application.
Welding Cast Iron: A Practical Approach
Welding cast iron presents unique challenges due to its high carbon content and brittle nature. Successfully welding this material requires careful preparation, specific techniques, and an understanding of the metallurgical changes that occur during the welding process. Preheating the cast iron to a specific temperature helps to reduce the risk of cracking by slowing the cooling rate and minimizing stress build-up. Selecting the appropriate filler metal, often a nickel-based rod or a specialized cast iron rod, is crucial for achieving a strong and durable weld. Controlling the heat input during welding is also essential. Excessive heat can lead to the formation of hard, brittle structures that are prone to cracking. Low heat input, on the other hand, can result in incomplete fusion and a weak weld. Post-weld heat treatment can further enhance the weld’s properties and reduce residual stresses.
While specific techniques vary depending on the type of cast iron and the application, several key principles apply. Cleanliness is paramount. Thoroughly cleaning the base metal removes contaminants that can weaken the weld. Proper joint design also plays a vital role. A properly designed joint will minimize stress concentrations and promote uniform heat distribution. Employing techniques such as peening the weld bead while it is still hot can help relieve residual stresses. Finally, slow cooling after welding is essential to prevent rapid temperature changes that can induce cracking. This can be accomplished by covering the weld with an insulating material or allowing the component to cool slowly in a controlled environment.
People Also Ask About Welding Cast Iron
Can you weld cast iron with a MIG welder?
Yes, you can weld cast iron with a MIG welder, but it requires specific precautions. Using a nickel-based MIG wire is often recommended for its good compatibility with cast iron. Preheating and slow cooling remain crucial, as with other welding methods.
What kind of rod do you use to weld cast iron?
Nickel-Based Rods
Nickel-based welding rods are a popular choice for cast iron due to their ability to create strong, ductile welds that are resistant to cracking. They are relatively easy to use and provide good color match.
Cast Iron Rods
Specialized cast iron welding rods are also available and offer a closer match to the base metal’s composition. However, they can be more challenging to use and require careful heat control.
What is the best way to weld cracked cast iron?
Repairing cracked cast iron requires meticulous preparation. The crack must be completely cleaned and ground out to sound metal. Preheating is essential. The welding technique, often using a nickel-based rod and short weld beads, focuses on minimizing stress. Post-weld heat treatment can help relieve residual stresses and prevent further cracking. For critical applications, consulting a welding professional is recommended.
Do you have to preheat cast iron before welding?
Preheating cast iron before welding is highly recommended, although not always strictly mandatory for small, non-critical repairs. Preheating slows the cooling rate, which reduces the risk of cracking due to rapid temperature changes and the formation of hard, brittle martensite. The specific preheating temperature depends on the type of cast iron and the size and thickness of the component.
