Calculating Fractional Anisotropy with MRtrix3

A few notes about the image URL:

  • Dynamic URL: The URL uses the title as the search query. This means the image Bing returns will be related to the topic, but not necessarily a perfect illustration. It’s a good starting point, but you’ll likely want to replace it with a more specific and informative image.
  • Encoding: Spaces and special characters in the title will be URL-encoded by the browser, which is handled correctly by the src attribute’s construction above.
  • SEO Benefit (minimal): While using the title in the image alt text can be beneficial for SEO, dynamically generated image URLs from search engines don’t usually offer significant SEO advantages on their own. A dedicated, descriptive image file hosted on your server is generally better.
  • Alternative Images: You could also potentially use placeholder image services if you don’t have a specific image yet.

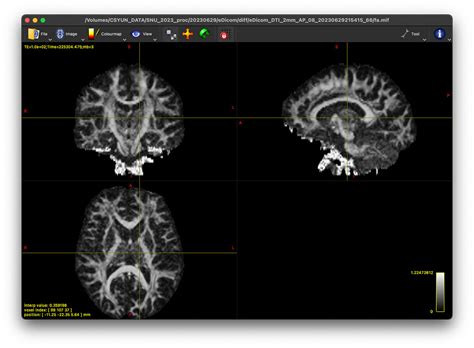

MRtrix3 FA Calculation

Unraveling the intricate architecture of the brain’s white matter pathways is crucial for understanding neural communication and cognitive function. Fractional anisotropy (FA), a widely used metric derived from diffusion-weighted MRI, quantifies the directional coherence of water diffusion within these pathways, providing valuable insights into tissue microstructure. MRtrix3, a powerful open-source software package, offers a comprehensive suite of tools for advanced diffusion MRI analysis, including robust and accurate FA calculation. However, navigating the complexities of MRtrix3 can be challenging for newcomers. This guide will illuminate the process of calculating FA using MRtrix3, starting from raw diffusion data and progressing through each essential step. Furthermore, we will explore common pitfalls and offer practical tips for optimizing your analysis workflow and ensuring reliable results. Whether you are a seasoned neuroimager or just beginning your journey into the fascinating world of diffusion MRI, this tutorial will equip you with the knowledge and skills to effectively utilize MRtrix3 for FA calculation and unlock the secrets hidden within the brain’s intricate wiring.

The first critical step involves converting your raw diffusion-weighted images into a format compatible with MRtrix3. Typically, this involves converting DICOM files to the NIfTI format using the mrconvert command. Subsequently, denoising your data is paramount for minimizing the impact of noise-induced artifacts on FA estimation. MRtrix3 provides several effective denoising algorithms, such as dwidenoise, which leverages information across multiple diffusion-weighted images to effectively suppress noise while preserving valuable signal. Following denoising, accurate estimation of the diffusion tensor is essential. This is accomplished using the dwi2tensor command, which fits a tensor model to the diffusion data at each voxel. Moreover, correcting for eddy currents and subject motion is crucial for ensuring accurate tensor estimation. MRtrix3 offers robust tools like dwipreproc to address these distortions. Specifically, dwipreproc combines eddy current and motion correction into a single streamlined process, improving both the efficiency and accuracy of the preprocessing pipeline.

Once the diffusion tensor has been estimated, calculating FA becomes remarkably straightforward. The tensor2metric command in MRtrix3 allows for the extraction of various tensor-derived metrics, including FA. Simply specify the output file name and the desired metric (FA), and MRtrix3 will efficiently generate a map of FA values across your brain image. Additionally, it’s often beneficial to generate other related metrics such as mean diffusivity (MD), radial diffusivity (RD), and axial diffusivity (AD), which can provide complementary information about tissue microstructure. These can also be extracted using tensor2metric. Finally, visualizing the results is crucial for interpreting the calculated FA values. MRtrix3 integrates seamlessly with other neuroimaging software packages, enabling you to visualize your FA maps in three dimensions and overlay them onto anatomical images for precise anatomical localization. In conclusion, by meticulously following these steps and understanding the underlying principles, you can harness the power of MRtrix3 to accurately calculate FA and gain valuable insights into the intricate microstructural organization of the brain’s white matter pathways. Remember to consult the comprehensive MRtrix3 documentation for more detailed information and advanced options.

Installing MRtrix3 and Setting up Your Environment

Getting MRtrix3 up and running on your system is the first step towards harnessing its powerful diffusion MRI analysis capabilities. The installation process can vary slightly depending on your operating system (OS), but generally follows a similar pattern. MRtrix3 champions a “batteries-included” philosophy, meaning it bundles most of the necessary dependencies within its installation. This simplifies the process significantly and reduces compatibility issues. Let’s break down the installation procedures and environment setup for different operating systems.

MRtrix3 offers pre-compiled binaries for several common operating systems, including Linux, macOS, and Windows Subsystem for Linux (WSL). This is the quickest and easiest way to get started, especially for those less comfortable compiling software from source. These binaries are regularly updated and optimized for performance. You can find the latest releases on the official MRtrix3 website. Simply download the appropriate archive for your system and follow the extraction and installation instructions provided.

For Linux and macOS, this typically involves extracting the downloaded archive to a suitable directory and then adding the ‘bin’ directory to your system’s PATH environment variable. This allows you to call MRtrix3 commands from anywhere in your terminal.

For WSL, the process is very similar to a standard Linux installation. Download the Linux binary and follow the standard Linux installation instructions within your WSL environment. This allows you to leverage the power of MRtrix3 within a Windows environment.

A crucial step, regardless of your OS, is to configure MRtrix3’s configuration file. This file allows you to specify settings such as the number of processing threads to utilize, the location of temporary files, and other important parameters. Detailed instructions on configuring this file are available in the MRtrix3 documentation. It’s a good practice to familiarize yourself with these settings to optimize performance and tailor the software to your specific needs.

Finally, it is always recommended to test your installation by running a simple MRtrix3 command, such as mrview. This will verify that the software is correctly installed and accessible. If you encounter any issues, consult the troubleshooting section of the MRtrix3 documentation or seek assistance from the active and helpful MRtrix3 community forum.

System Requirements and Recommendations for optimal performance

While MRtrix3 can run on systems with modest hardware, diffusion MRI processing can be computationally intensive. For optimal performance, consider the following:

Component Minimum Requirement Recommended
Operating System Linux, macOS, Windows (via WSL) Linux (specifically distributions designed for scientific computing)
RAM 8GB 32GB or more (especially for high-resolution datasets)
CPU Quad-core processor Multi-core processor with high clock speed
Storage 50GB free space 1TB or more (depending on dataset sizes)

Setting up Your Environment

Beyond the core installation of MRtrix3, setting up your environment correctly is crucial for efficient workflow and reproducible results. This includes setting up appropriate directory structures, managing data, and understanding the organization of MRtrix3 scripts.

Data Preparation: Converting DICOM to MRtrix3 Format

Before diving into the fascinating world of fractional anisotropy (FA) calculation with MRtrix3, we need to ensure our data is in the correct format. MRtrix3 operates on its own specific image format, and chances are your diffusion-weighted imaging (DWI) data is currently stored in the ubiquitous DICOM format. This section will guide you through the conversion process.

Converting DICOM to MRtrix3 Format

The core command for converting DICOM data to the MRtrix3 format is mrconvert. This powerful tool handles a variety of DICOM idiosyncrasies and outputs a .mif file, which is the standard image format used by MRtrix3. It also generates a .b file containing the b-values and b-vectors, essential information for diffusion analysis.

Using the mrconvert Command

The basic syntax for mrconvert is straightforward:

mrconvert input.dcm output.mif

Where input.dcm represents the path to your DICOM files (either a single file or a directory containing multiple files), and output.mif is the desired name for your output MRtrix3 image file. The corresponding b-value/b-vector file will automatically be named output.b.

Often, DICOM data is organized into a series of subdirectories. mrconvert is smart enough to traverse these directories and collate the DICOM files into a single MRtrix3 image. This makes handling large datasets significantly easier. It’s important to make sure all the DICOMs belonging to the DWI sequence you want to analyze are within the directory you point mrconvert to.

Here are some practical examples and additional options:

Command Description
mrconvert dwi_directory/ output.mif Converts all DICOMs within the dwi\_directory into output.mif and output.b.
mrconvert single_dwi.dcm output.mif Converts a single DICOM file (single\_dwi.dcm) to MRtrix3 format.
mrconvert input.dcm output.mif -fslgrad bvecs bvals Uses the FSL format gradient files (bvecs and bvals) instead of trying to extract them from the DICOMs. This is useful when the gradient information isn’t stored in the standard DICOM format.
mrconvert input.dcm output.mif -grad gradient_table.txt Uses a gradient table file to specify the b-vectors and b-values. This offers maximum flexibility for handling complex or non-standard acquisitions. The format for this file is defined in the MRtrix3 documentation.
mrconvert input.dcm output.mif -force Overwrites any existing output.mif and output.b files without prompting for confirmation. Exercise caution with this option!

Understanding and utilizing these options empowers you to handle a wide range of DICOM datasets and prepare them successfully for subsequent MRtrix3 processing steps, including FA calculation.

After successful conversion, you’ll have the necessary .mif and .b files ready for further analysis within the MRtrix3 environment. Keep these files safely stored, as they form the basis for all subsequent processing steps. Remember to consult the extensive MRtrix3 documentation for detailed explanations of all available mrconvert options and to stay updated on the latest features.

Preprocessing: Denoising and Gibbs Ringing Correction

Before we can dive into calculating fractional anisotropy (FA), it’s crucial to prepare our diffusion-weighted MRI (dMRI) data. This preprocessing step involves tackling two main issues that can affect the accuracy of our FA calculations: noise and Gibbs ringing artifacts. Noise is an inherent part of any MRI acquisition and can obscure the true diffusion signal. Gibbs ringing, on the other hand, is a specific type of artifact that manifests as spurious oscillations near sharp edges in the image, often around areas of high contrast like the skull-brain interface. Addressing these issues leads to a more robust and reliable FA calculation.

Denoising

Denoising aims to reduce the impact of noise in the dMRI data while preserving the underlying signal. There are various methods for denoising dMRI data, each with its strengths and weaknesses. One commonly used approach in mrtrix3 is the dwidenoise command, which uses a sophisticated algorithm based on Principal Component Analysis (PCA) in local patches. This method effectively differentiates between true signal and noise based on the correlated nature of noise across different diffusion directions. Another approach is using Markov Random Field based methods, implemented in tools like MRtrix3’s dwimrfix.

Gibbs Ringing Correction

Gibbs ringing, those pesky ripples you see near sharp edges, can also throw off your FA calculations. mrtrix3 provides the mrdegibbs command to mitigate this issue. This command applies a specialized filtering technique that smooths out the oscillations without excessively blurring the underlying image features. This helps to ensure that the FA values we calculate are more representative of the true tissue microstructure. The method used in mrdegibbs is based on local subvoxel-shifts, which helps to maintain the sharpness of anatomical boundaries while effectively suppressing the ringing artifacts.

Applying Denoising and Gibbs Ringing Correction in mrtrix3

Within mrtrix3, addressing these preprocessing steps is fairly straightforward. The commands are designed to be intuitive and easy to integrate into your processing pipeline. Generally, denoising is performed before Gibbs ringing correction. This order is recommended because Gibbs ringing correction can sometimes amplify noise if applied first. Here’s a breakdown of typical usage and additional considerations for each command:

dwidenoise

The basic syntax for denoising your dMRI data (e.g., *dwi.mif*) with dwidenoise is:

dwidenoise dwi.mif dwi_denoised.mif

Additional options, like specifying a noise map, can enhance the performance. It’s important to inspect the denoised data visually to ensure it has been processed correctly.

mrdegibbs

Once denoised, you can address Gibbs ringing using mrdegibbs. The general syntax is:

mrdegibbs dwi_denoised.mif dwi_denoised_degibbs.mif

mrdegibbs offers several advanced options for fine-tuning the correction. For instance, you can specify the algorithm to be used, the strength of the correction, or even apply it in a multi-shell optimized way for multi-shell dMRI data. Again, visual inspection is crucial to confirm the effectiveness of the correction without introducing unwanted blurring.

Command Input Output Description
dwidenoise dwi.mif dwi_denoised.mif Denoises the dMRI data.
mrdegibbs dwi_denoised.mif dwi_denoised_degibbs.mif Corrects for Gibbs ringing artifacts.

By utilizing dwidenoise and mrdegibbs appropriately, we lay the foundation for accurate and reliable FA calculations in mrtrix3. Remember to carefully consider the options available for each command and visually inspect the results to ensure the optimal preprocessing of your dMRI data.

Performing Motion and Eddy Current Correction

Motion and eddy currents are two major confounding factors in diffusion MRI data. Motion, simply put, refers to the subject moving their head during the scan. Even tiny movements can introduce artifacts that skew our calculations of fractional anisotropy (FA). Eddy currents, on the other hand, are induced by the rapidly changing magnetic field gradients used in diffusion imaging. These currents create their own magnetic fields, which can distort the diffusion signal and lead to inaccuracies in FA estimation.

Fortunately, MRtrix3 offers robust tools to address these issues. Motion correction typically involves aligning all the diffusion-weighted images (DWIs) to a reference image, often the b=0 image (the image acquired without any diffusion weighting). This realignment minimizes the impact of head movement throughout the scan.

Motion Correction with MRtrix3’s dwipreproc

The dwipreproc command in MRtrix3 provides a streamlined way to perform motion and eddy current correction simultaneously. It uses a rigid-body transformation to align the DWIs to the reference image, effectively compensating for head motion. Furthermore, it models the effects of eddy currents and corrects for them, ensuring a more accurate representation of the underlying diffusion signal. Beyond just rotations and translations, dwipreproc can also account for susceptibility-induced distortions using field map information, if available. This extra correction further refines the data and reduces artifacts.

Detailed Explanation of Motion and Eddy Current Correction in dwipreproc

The dwipreproc command cleverly combines motion and eddy current correction into a single step. It achieves this by iteratively estimating both the motion parameters and the eddy current distortions. Initially, a simple motion correction is performed. Subsequently, the residual distortions, which likely include eddy current effects, are analyzed. dwipreproc uses a sophisticated model to represent these eddy current distortions, considering factors like the diffusion gradient directions and the individual slice timings. This model allows for a more precise correction compared to simpler methods. The process iterates, refining both the motion estimates and the eddy current correction until convergence is reached. This combined approach provides a comprehensive solution for minimizing the impact of both motion and eddy currents on the diffusion data, resulting in improved accuracy for subsequent analyses, including FA calculations. The command also allows for using a more advanced slice-to-volume motion correction method for more complex motion patterns if needed.

For instance, the command might look like this:

dwipreproc dwi.mif preprocessed_dwi.mif -rpe_none -pe_dir AP -eddy_options " --slm=linear"

Here, dwi.mif is the input DWI data, and preprocessed_dwi.mif is the output after motion and eddy current correction. The -rpe_none option indicates no reverse phase encoding data is available. -pe_dir AP specifies the phase encoding direction (Anterior-Posterior in this example). Finally, -eddy_options allows passing specific options to the eddy current correction algorithm, with --slm=linear specifying a linear model for slice-to-volume motion correction.

A summary of common options for dwipreproc is provided below:

Option Description
-rpe_none Indicates no reverse phase encoding data. Other options include -rpe_pair, -rpe_all
-pe_dir Phase encoding direction (e.g., AP, PA, RL, LR, IS, SI).
-eddy_options Allows passing specific options to the eddy current correction algorithm.
-nthreads Specifies the number of threads to use for processing.

Estimating the Diffusion Tensor (DT)

Calculating fractional anisotropy (FA) with MRtrix3 starts with estimating the diffusion tensor (DT) at each voxel of your diffusion-weighted image data. This tensor mathematically represents the diffusion of water molecules in that specific location. Think of it as a 3x3 matrix describing how restricted or free diffusion is in different directions. A higher FA value indicates stronger directionality of diffusion, often associated with coherent white matter fibre bundles. Conversely, lower FA suggests more isotropic diffusion, meaning water diffuses equally in all directions, commonly seen in areas like cerebrospinal fluid or areas with crossing fibres.

In MRtrix3, the primary command for diffusion tensor estimation is dwi2tensor. This powerful tool takes your preprocessed diffusion-weighted image (commonly a .mif file) as input and outputs a tensor image, also in .mif format. The output image contains the six unique elements of the symmetric diffusion tensor at each voxel.

One crucial aspect to consider when using dwi2tensor is addressing the potential impact of noise in your diffusion-weighted data. Noise can lead to inaccuracies in tensor estimation, particularly in regions with low signal-to-noise ratio. MRtrix3 offers robust options to mitigate this, notably the -wls flag. This implements weighted least squares estimation, which assigns lower weights to data points with higher noise levels, improving the accuracy and stability of the tensor estimation, especially in noisy regions.

The dwi2tensor Command and its Options

The basic usage of the dwi2tensor command is straightforward:

dwi2tensor dwi.mif tensor.mif

This will generate a tensor image named “tensor.mif” from your input diffusion data “dwi.mif”. However, for more robust results, using the weighted least squares option is highly recommended:

dwi2tensor -wls dwi.mif tensor.mif

Another useful option is -mask which allows you to restrict the tensor estimation to a specific region of interest defined by a mask image:

dwi2tensor -wls -mask mask.mif dwi.mif tensor.mif

Understanding the Output

The resulting “tensor.mif” file contains the six unique elements of the diffusion tensor for each voxel. These represent the diffusion in three orthogonal directions and their interactions (off-diagonal elements). You can visualize these tensor images using tools like mrview, which can help you qualitatively assess the diffusion characteristics in different brain regions. However, for quantitative analysis and to obtain the FA, further processing steps are needed, which will be discussed in subsequent sections.

Commonly Used Options for dwi2tensor:

Option Description
-wls Perform weighted least squares fitting. Highly recommended for improved accuracy.
-mask mask.mif Restrict tensor estimation to voxels within the provided mask.
-grad grads.b Specify the gradient scheme file. Essential if not embedded in the DWI image.

Understanding the dwi2tensor command and its options is crucial for accurate and reliable DT estimation, laying the groundwork for subsequent calculations like fractional anisotropy.

Calculating Fractional Anisotropy (FA) from the Diffusion Tensor

Fractional anisotropy (FA) is a scalar value between 0 and 1 that describes the degree of anisotropy of a diffusion process. A value of 0 means that diffusion is isotropic, i.e., it is unrestricted (or equally restricted) in all directions. A value of 1 means that diffusion occurs only along one axis and is fully restricted along all other directions. In the context of diffusion MRI, FA is a measure often used to assess white matter integrity, as the diffusion of water molecules in healthy white matter tends to be highly directional due to the presence of aligned axonal fibers.

Calculating FA with MRtrix3

MRtrix3 provides a streamlined workflow for calculating FA from diffusion-weighted MRI data. The process involves several key steps, from initial image pre-processing to the final FA calculation.

Data Preprocessing

Before calculating FA, ensure your diffusion-weighted images are preprocessed. This typically includes steps like denoising, Gibbs ringing correction, eddy current and motion correction, and bias field correction. MRtrix3 offers powerful tools like dwidenoise, mrdegibbs, and dwipreproc for these purposes. The order in which these steps are applied is crucial and can significantly impact the final results. Refer to the MRtrix3 documentation for recommended preprocessing pipelines.

Tensor Estimation

The core of FA calculation lies in estimating the diffusion tensor. This tensor, a 3x3 symmetric matrix, mathematically models the diffusion process at each voxel. MRtrix3’s dwi2tensor command takes the preprocessed diffusion-weighted images as input and outputs the estimated tensor image, typically stored in a format compatible with further MRtrix3 processing.

FA Calculation

Once the diffusion tensor image is generated, MRtrix3’s tensor2metric command allows for straightforward FA calculation. Simply specify the tensor image as input and indicate FA as the desired output metric. The resulting image will contain FA values for each voxel, ranging from 0 to 1.

Interpreting FA Values

When interpreting FA maps, remember that while high FA generally suggests coherent white matter structure, lower FA doesn’t necessarily indicate pathology. It can be influenced by various factors such as crossing fibers, partial voluming effects (where multiple tissue types contribute to the signal within a single voxel), or free water contamination. Therefore, careful consideration of the underlying anatomy and other imaging modalities is essential for accurate interpretation.

Example MRtrix3 commands

Here’s a simplified example demonstrating the command structure:

Command Description
dwi2tensor dwi.mif tensor.mif Estimates the diffusion tensor from the diffusion-weighted image dwi.mif and outputs the tensor image tensor.mif.
tensor2metric tensor.mif -fa fa.mif Calculates FA from the tensor image tensor.mif and outputs the FA image fa.mif.

Advanced Considerations and Further Analysis

Beyond basic FA calculation, MRtrix3 offers a rich set of tools for more advanced diffusion analysis. For instance, you can investigate specific white matter tracts using tractography or explore other diffusion metrics like mean diffusivity (MD), radial diffusivity (RD), and axial diffusivity (AD) to gain a more comprehensive understanding of tissue microstructure. Furthermore, MRtrix3 supports various advanced preprocessing techniques, such as diffusion kurtosis imaging and multi-shell multi-tissue constrained spherical deconvolution, allowing for even more sophisticated analysis of diffusion MRI data. Exploring these features can provide valuable insights beyond the scope of simple FA assessment.

Troubleshooting Common Issues with FA Calculation

Calculating Fractional Anisotropy (FA) with mrtrix3 is generally straightforward, but occasionally you might run into some bumps in the road. This section aims to help you navigate these common issues and get your FA calculations back on track.

Negative FA Values

FA, by definition, should range from 0 to 1. A negative FA value is mathematically impossible and indicates something went wrong in the processing pipeline. This often stems from issues during the diffusion tensor fitting stage (using dwi2tensor). One common culprit is negative eigenvalues in the estimated diffusion tensor. Eigenvalues represent the diffusivities along the principal directions, and they should all be non-negative.

Several factors can contribute to negative eigenvalues, including noise in the diffusion-weighted images (DWIs), susceptibility distortions, or Gibbs ringing artifacts. Addressing these underlying issues is key to resolving negative FA values.

Denoising your DWIs

Noise can significantly affect tensor estimation. mrtrix3 provides the dwidenoise command for denoising your DWIs. This step is crucial for robust FA calculation and should be performed before fitting the tensor model.

Correcting for distortions

Susceptibility-induced distortions can lead to inaccuracies in the diffusion signal, ultimately affecting the tensor estimation. Use dwifslpreproc to perform eddy current and susceptibility distortion correction before proceeding with FA calculation.

FA Values Greater Than 1

Like negative FA values, values exceeding 1 are also impossible and point to errors in the processing pipeline. While less common than negative FA, this issue can still arise and typically indicates problems with data normalization or scaling.

Checking your DWI scaling

Ensure your DWIs have been correctly scaled. If the b-values are not accurately represented, or if the data has been inappropriately scaled during preprocessing, this can lead to errors in the tensor fitting and subsequent FA calculation. Review the scaling applied during the acquisition and any preprocessing steps to identify potential issues.

Unrealistic FA Values in Specific Regions

Sometimes, FA values might seem improbable only in certain brain regions. This can be due to partial volume effects at tissue boundaries, particularly at the interface of cerebrospinal fluid (CSF) and white matter.

Masking CSF

Consider masking out CSF regions before calculating FA. This can help to mitigate partial volume effects and provide more accurate FA values in white matter regions. The 5ttgen command in mrtrix3 can generate a five-tissue-type (5TT) image, which you can then use to create a mask.

Inconsistent FA Values Across Subjects

Variations in FA values between subjects are expected to some extent. However, significant inconsistencies can suggest issues with data acquisition or processing. Standardizing your preprocessing pipeline and ensuring consistent acquisition parameters are essential for minimizing these variations.

Standardizing your pipeline

Using a consistent preprocessing pipeline, including denoising, distortion correction, and bias field correction, is vital for minimizing inter-subject variability in FA. Ensure the same parameters and software versions are used for all subjects.

Investigating acquisition parameters

Discrepancies in acquisition parameters, such as b-values, number of diffusion directions, and spatial resolution, can contribute to variations in FA across subjects. Carefully review the acquisition protocols to identify potential inconsistencies.

Low FA Values in White Matter

Low FA in white matter regions where you expect high anisotropy can suggest issues with data quality, preprocessing, or even underlying pathology. Several factors can contribute to this, and careful investigation is necessary to determine the root cause. It could stem from issues with the DWI data itself, or from problems during tensor reconstruction.

Troubleshooting Table

Issue Possible Cause Solution
Negative FA Noise in DWIs, negative eigenvalues during tensor fitting Denoise DWIs with dwidenoise
FA > 1 Incorrect DWI scaling Verify and correct DWI scaling
Unrealistic FA in specific regions Partial volume effects Mask CSF regions
Low FA in white matter Issues with DWI data quality or tensor reconstruction Review acquisition parameters and processing steps

Remember, systematically investigating these potential issues will help you pinpoint the source of the problem and ultimately achieve reliable and accurate FA values. Utilizing mrtrix3’s comprehensive tools and understanding the underlying principles of diffusion MRI will greatly assist in troubleshooting and ensuring high-quality FA calculations.

Calculating Fractional Anisotropy (FA) with MRtrix3

MRtrix3 offers a robust and flexible framework for diffusion-weighted MRI (dMRI) analysis, including the calculation of fractional anisotropy (FA). FA is a scalar value between 0 and 1 that describes the degree of anisotropy in a voxel. A value of 0 indicates isotropic diffusion (equal diffusion in all directions), while a value of 1 represents perfect anisotropy (diffusion restricted to a single direction). MRtrix3’s approach to FA calculation emphasizes accuracy and adaptability to various diffusion models, providing researchers with powerful tools for characterizing white matter microstructure.

The typical workflow in MRtrix3 for FA calculation involves several key steps. First, raw diffusion-weighted images undergo pre-processing, including denoising, eddy current correction, and bias field correction. Then, a diffusion model is fitted to the pre-processed data. Common models include the diffusion tensor model (DTI), which is the basis for the standard FA calculation, and more complex models like constrained spherical deconvolution (CSD) or the ball-and-stick model. After fitting the chosen model, the FA map is generated based on the estimated diffusion tensor or the derived fiber orientation distribution function (fODF). This map can then be visualized and used for further analysis, such as tract-based spatial statistics or connectome reconstruction.

MRtrix3 provides specific commands to facilitate this process. dwi2tensor fits the diffusion tensor model and outputs the tensor image, which can then be used by tensor2metric to calculate FA. For more complex models, the dwi2fod command estimates the fODF, from which generalized FA (GFA) can be computed. It’s crucial to select the appropriate model and command based on the research question and the characteristics of the acquired dMRI data. MRtrix3’s documentation offers detailed explanations and examples to guide users through the process.

People Also Ask about MRtrix3 FA Calculation

How is FA calculated in MRtrix3?

MRtrix3 calculates FA based on the eigenvalues of the diffusion tensor. After fitting a diffusion model (e.g., using dwi2tensor for DTI), the tensor2metric command extracts the eigenvalues (λ1, λ2, λ3). FA is then computed using the following formula:

FA = sqrt(3/2) * sqrt( (λ1-MD)^2 + (λ2-MD)^2 + (λ3-MD)^2 ) / sqrt( λ1^2 + λ2^2 + λ3^2 )

Where MD is the mean diffusivity, calculated as (λ1+λ2+λ3)/3.

What is the difference between FA and GFA in MRtrix3?

FA is typically calculated from the diffusion tensor model (DTI), which assumes a single fiber population within each voxel. GFA, or generalized fractional anisotropy, is calculated from the fiber orientation distribution function (fODF) estimated by more complex models like CSD. GFA is more sensitive to the presence of multiple fiber crossings within a voxel, which DTI struggles to resolve. In voxels with a single fiber population, FA and GFA should be similar. However, in regions with crossing fibers, GFA will typically be higher than FA.

Why should I use MRtrix3 for FA calculation?

MRtrix3 offers several advantages for FA calculation:

  • Advanced diffusion models: Supports both standard DTI-based FA and GFA calculated from more advanced models like CSD, providing more accurate characterization of complex fiber architecture.
  • State-of-the-art algorithms: Utilizes robust and validated algorithms for pre-processing, model fitting, and metric calculation.
  • Flexibility and customization: Provides a wide range of options and parameters for tailoring the analysis to specific research needs.
  • Open-source and community-supported: Benefits from continuous development and active user community support.

How do I visualize FA maps in MRtrix3?

MRtrix3 provides the mrview command for visualizing FA maps (and other derived metrics). mrview offers interactive 3D visualization, allowing you to explore the data in different views and planes. You can also overlay FA maps onto anatomical images for better anatomical context.
